Pro 3009

OVERVIEW

  • INTRODUCTION
  • BENEFITS
  • TECHNOLOGY
Pro 3009

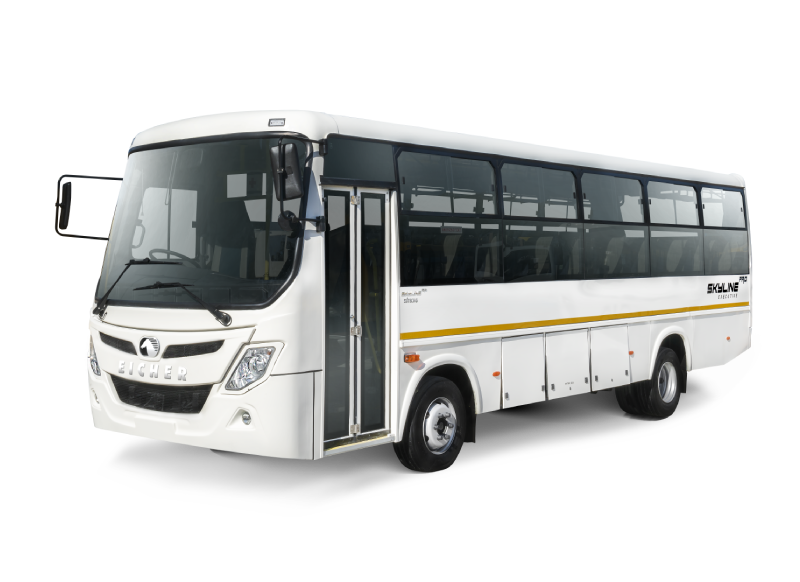

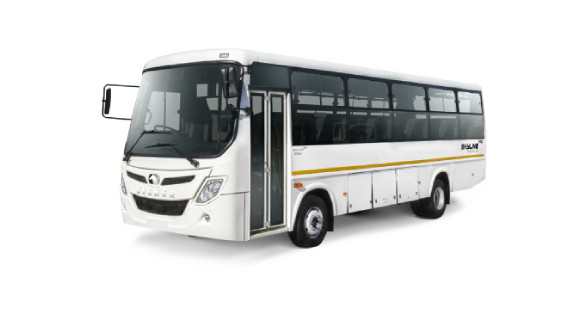

The new Skyline Pro is the premium range of Eicher buses built on the reliable 3000 series platform. Comfort and safety are the hallmark of the Pro range. The new E494 Engine gives a definitive edge to Skyline Pro to deliver a premium journey experience every time.

SPECIFICATIONS

MODEL NAME Eicher Skyline Pro 3009
Vehicle Weights
 GVW 10000
TARE WEIGHT 6565
GCM 12000
Engine

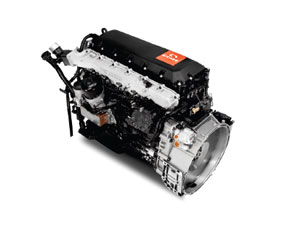

 Type E494
Max Power 146 HP @ 2800rpm
Max Torque 490 nm (1400-1800) RPM
Displacement 3.8 Litres
Performance
 Grade ability 34%
TCD 18.5m
Clutch Type 330 clutch
GearBox Model ET40S6 (6.38-0.77)
Axle Front Axle I-Beam Type
Wheel Rim and Tyres
 Front & Spare 235/75 R17.5 , 14pr Tubeless Radial
Rear 235/75 R17.5 , 14PR Tubeless Radial
Suspension
 Front and Rear Weveller suspension with anti-roll bar mechanism in front and Parabolic suspension in rear.
Shock Absorber Hydraulic double acting telescope shock absorber at front and rear
Steering Type Power steering, column tilt and telescopic
Electrical
 Battery 24V(12V 130Ah X2)
Alternator 24V 75amp Without Vacuum Pump X2
Fuel Tank Fuel Tank Capacity 160 ltrs
Brakes
 Air Brake S-cam Brakes Dia.325 X 140 at Front and Rear With ABS system 4S-2M (4 SENSOR,2 MODULATOR)
Parking Brake Spring brakes acting on rear wheels.
Seats
 Seating capacity 36+D
Type HHR seats
Dimensions
 WheelBase 5260
Front Overhang 1936
Rear Overhang 3074
Overall Length 10269
Overall Width 2336
Overall Height 2301
