Eicher Pro 6016

OVERVIEW

  • INTRODUCTION
  • BENEFITS
  • TECHNOLOGY
  • APPLICATIONS
Eicher Pro 6016 Truck

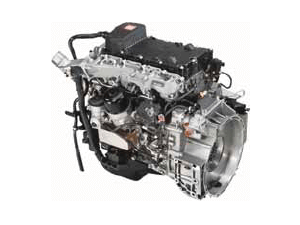

The design and development of Eicher Pro 6016 provides unparalleled business advantage by maximizing efficiency right through the life-cycle of the vehicle and minimizing the cost of operations. Eicher Pro 6016 is a highly-reliable 16 ton GVW truck powered with the next generation 5.1 litre VEDX5 CRS technology engine designed in collaboration with Volvo group. The 4 cylinder, 4 valve engine has high combustion efficiency and low parasitic losses and delivers 210 HP and 825 NM torque, resulting in class-leading fuel efficiency.

SPECIFICATIONS

PARAMETERS Value
Model Pro 6016
Vehicle Weight (Kgs) GVM 16000
FAW (laden) 7100
RAW (laden) 9000
Tier Mass - w/o load body 5930
Engine Model VEDX5, 4 Cylinder 4 Valve per cylinder, turbo charged, intercooled diesel, common rail
Capacity 5100cc
Max Power 210 Hp @ 2200 rpm
Max Torque 825 Nm @ 1200 - 1600 rpm
Emission Euro III
Transmission Gear Box ET70S6 (6 Forward 1 Reverse)
Gear Shift Linkage Single Rod GSL
Clutch Clutch 395 mm Plate Dia, spring loaded push type
Rear Axle Rear Axle Ratio 5.286
Chassis Frame Type Ladder type joggle frame
Section 285 X 76 X 7
Steering System Type Power steering
TCD (M) 18
Suspension Front Suspension Semi elliptical leaf springs with double acting telescopic shock absarber & Anti-roll bar
Rear Suspension Semi elliptical laminated leaf springs
Wheel & Tyres Tyres Size Tubeless radial 295/80R22.5-16PR
Whell Rim Size 8.25X22.5
Cabin Cabin 2.3 m Day cab (Premium)
Model New Pro 6016 HVAC CAB with IDIS
Brakes Brake type Dual Circuit, Full Air
Parking brake type Pneumatic Control, hand operated
ABS Standard
Electrical Battery 24.V.150AH
Fuel Tank Size 220 litres
Performance Max Speed (kmph) 110
Gradeability 34.5%
Vehicle Dimensions (mm) Wheel Base 5340
FOH 1423
ROH 2824
Cabin Width 2300
Ground Clearance 230
